EX SeriesSwitching Type Programmable DC Power Supply

고성능, 고효율의 슬림형 19인치 RACK 표준형 제품

EX Series는 600W~10,000W 용량의 고성능, 고효율의 스위칭타입 프로그래머블 직류전원 공급장치로써 SCPI(Standard Commands for Programmable Instruments) 프로토콜에 준하는 RS-232C, RS-485, TCP/IP(option) 통신을 지원하며 19inch Rack에 장착이 가능하도록 설계되었으며, 직렬과 병렬을 통하여 10kW 이상의 제품도 공급하고 있습니다.



Dimension

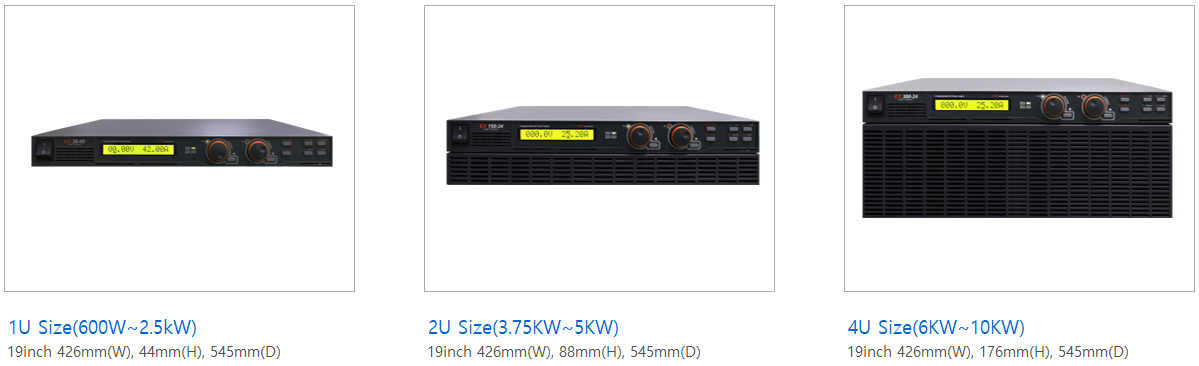

1U Size(600W~2.5kW) : 19inch wide (426mm) Standard, 1U height (44mm), depth (545mm)
2U Size(3.75W~5kW) : 19inch wide (426mm) Standard, 2U height (88mm), depth (545mm)
4U Size(6kW~10kW) : 19inch wide (426mm) Standard, 4U height (176mm), depth (545mm)

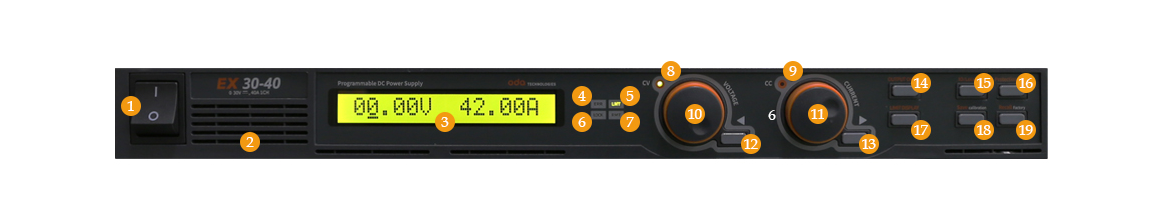

1메인 전원 ON/OFF 스위치11전류 조정 Encoder
2환기구12전압 Cursor 또는 메뉴변경 Key
316Cha타입 LCD Display13전류 Cusor 또는 메뉴변경 Key
4Error Lamp14출력 전압/전류 ON/OFF
5Limit Display Lamp15IO/Local & Error Display Key
6Key Lock Lamp16Protection & Front Lock Key
7Remote Interface Lamp17전압/전류 설정값 Display Key
8CV 램프18Save 또는 Calibration Key
9CC 램프19Recall 또는 Factory Key
10전압 조정 Encoder　　









· 4-Digit Resolution 디스플레이
· 8 Character , 2 line LCD 디스플레이
· 엔코더를 이용한 쉬운 전압 전류 셋팅
· CV/CC 모드
· 원격 전압 감지
· OVP, OCP 보호 모드 제공
· 전압 하한값(U.V.L), 상한값(O.V.L), 전류 하한값(U.C.L), 상한값(O.C.L) Leverl 셋팅기능
· 교정 기능 제공(메뉴얼 및 PC 기반)
· 패널 잠금 기능 제공
· Memory Store & Recall 기능 제공(10개 저장 가능)
· 출력 ON/OFF 기능 제공
· 11개 다양한 Factory Mode 기능 제공
· RS-232C, RS-485 통신 기본제공(TCP/IP 통신 옵션)
· 단상, AC 입력 220VAC ±10%










·제품사이즈





· 제품라인업 및 사양
* 표시된 제품은 CE인증된 모델입니다.




　　　　






　

ParameterOutput RatingLine&Load RegulationProgramming AccuracyReadback AccuracyRipple & Noise (@20Mhz)RMS ValueDisplay ResolutionWeightEfficiency

Model(@ 0℃ ~ 40℃)(%0.1+offset)@25℃(@0.1+offset)@25℃(@0.1+offset)(Typical)
　　VA　VAVAVA%

  1U Size 426mm(W)*44mm(H)*545mm(D) : 600W ~ 2.5kW

EX20-30*0~210~31.5≤ 0.1%30mV95mA20mV63mA10mV0.010.016.25Kg80

EX20-60*0~210~63≤ 0.1%30mV189mA20mV126mA10mV0.010.017.5Kg80

EX20-90*0~210~94.5≤ 0.1%30mV284mA20mV189mA10mV0.010.018.75Kg80

EX20-120*0~210~126≤ 0.1%30mV378mA20mV252mA15mV0.010.113Kg80

EX30-20*0~31.50~21≤ 0.1%45mV63mA30mV42mA10mV0.010.016.25Kg82

EX30-40*0~31.50~42≤ 0.1%45mV126mA30mV84mA10mV0.010.017.5Kg82

EX30-60*0~31.50~63≤ 0.1%45mV189mA30mV126mA10mV0.010.018.75Kg82

EX30-80*0~31.50~84≤ 0.1%45mV252mA30mV168mA10mV0.010.0110Kg82

EX50-12*0~52.50~12.6≤ 0.1%75mV38mA50mV25mA10mV0.010.016.25Kg85

EX50-24*0~52.50~25.2≤ 0.1%75mV76mA50mV50mA10mV0.010.017.5Kg85

EX50-36*0~52.50~37.8≤ 0.1%75mV113mA50mV76mA10mV0.010.018.75Kg85

EX50-48*0~52.50~50.4≤ 0.1%75mV151mA50mV101mA10mV0.010.0110Kg85

EX60-100~630~10.5≤ 0.1%90mV32mA60mV21mA10mV0.010.016.25Kg85

EX60-200~630~21≤ 0.1%90mV63mA60mV42mA10mV0.010.017.5Kg85

EX60-300~630~31.5≤ 0.1%90mV95mA60mV63mA10mV0.010.018.75Kg85

EX60-400~630~42≤ 0.1%90mV126mA60mV84mA10mV0.010.0110Kg85

EX80-7.50~840~7.875≤ 0.1%120mV24mA80mV16mA10mV0.010.0016.25Kg85

EX80-150~840~15.75≤ 0.1%120mV47mA80mV32mA10mV0.010.017.5Kg85

EX80-22.50~840~23.6≤ 0.1%120mV71mA80mV47mA10mV0.010.018.75Kg85

EX80-300~840~31.5≤ 0.1%120mV95mA80mV63mA10mV0.010.0110Kg85

EX100-60~1050~6.3≤ 0.1%150mV19mA100mV13mA10mV0.10.0016.25Kg85

EX100-120~1050~12.6≤ 0.1%150mV38mA100mV25mA10mV0.10.017.5Kg85

EX100-180~1050~18.9≤ 0.1%150mV57mA100mV38mA10mV0.10.018.75Kg85

EX100-240~1050~25.2≤ 0.1%150mV76mA100mV50mA10mV0.10.0110Kg85

EX150-40~157.50~4.2≤ 0.1%225mV13mA150mV8mA15mV0.10.0016.25Kg85

EX150-80~157.50~8.4≤ 0.1%225mV25mA150mV17mA15mV0.10.0017.5Kg85

EX150-120~157.50~12.6≤ 0.1%225mV38mA150mV25mA15mV0.10.018.75Kg85

EX150-160~157.50~16.8≤ 0.1%225mV50mA150mV34mA15mV0.10.0110Kg85

EX200-30~2100~3.15≤ 0.1%300mV9mA200mV6mA15mV0.10.0016.25Kg85

EX200-60~2100~6.3≤ 0.1%300mV19mA200mV13mA15mV0.10.0017.5Kg85

EX200-90~2100~9.45≤ 0.1%300mV28mA200mV19mA15mV0.10.0018.75Kg85

EX200-120~2100~12.6≤ 0.1%300mV38mA200mV25mA15mV0.10.0110Kg85

EX300-2*0~3150~2.1≤ 0.1%450mV6mA300mV4mA25mV0.10.0016.25Kg85

EX300-4*0~3150~4.2≤ 0.1%450mV13mA300mV8mA25mV0.10.0017.5Kg85

EX300-6*0~3150~6.3≤ 0.1%450mV19mA300mV13mA25mV0.10.0018.75Kg85

EX300-8*0~3150~8.4≤ 0.1%450mV25mA300mV17mA25mV0.10.00110Kg85

EX600-10~6300~1.05≤ 0.1%900mV3mA600mV2mA60mV0.10.0018.75Kg85

EX600-20~6300~2.1≤ 0.1%900mV6mA600mV4mA60mV0.10.0018.75Kg85

  2U Size 426mm(W)*88mm(H)*545mm(D) : 3.75KW ~ 5KW

EX20-180*0~210~189≤ 0.1%30mV567mA20mV378mA15mV0.010.115.5Kg80

EX20-2400~210~252≤ 0.1%30mV756mA20mV504mA15mV0.010.118Kg80

EX30-120*0~31.50~126≤ 0.1%45mV378mA30mV252mA15mV0.010.115.5Kg82

EX30-160*0~31.50~168≤ 0.1%45mV504mA30mV336mA15mV0.010.118Kg82

EX50-720~52.50~75.6≤ 0.1%75mV227mA50mV151mA15mV0.010.0115.5Kg85

EX50-960~52.50~100.8≤ 0.1%75mV302mA50mV202mA15mV0.010.0118Kg85

EX60-600~630~63≤ 0.1%90mV189mA60mV126mA15mV0.010.0115.5Kg85

EX60-800~630~84≤ 0.1%90mV252mA60mV168mA15mV0.010.0118Kg85

EX80-450~840~47.25≤ 0.1%120mV142mA80mV95mA15mV0.010.0115.5Kg85

EX80-600~840~63≤ 0.1%120mV189mA80mV126mA15mV0.010.0118Kg85

EX100-360~1050~36≤ 0.1%150mV113mA100mV76mA15mV0.10.0115.5Kg85

EX100-480~1050~50.4≤ 0.1%150mV151mA100mV101mA15mV0.10.0118Kg85

EX150-240~157.50~25.2≤ 0.1%225mV76mA150mV50mA15mV0.10.0115.5Kg85

EX150-320~157.50~33.6≤ 0.1%225mV101mA150mV67mA15mV0.10.0118Kg85

EX200-18*0~2100~18.9≤ 0.1%300mV57mA200mV38mA30mV0.10.0115Kg85

EX200-24*0~2100~25.2≤ 0.1%300mV76mA200mV50mA30mV0.10.0118Kg85

EX300-120~3150~12.6≤ 0.1%450mV38mA300mV25mA50mV0.10.0115Kg85

EX300-160~3150~16.8≤ 0.1%450mV50mA300mV34mA50mV0.10.0118Kg85

EX600-30~6300~3.15≤ 0.1%900mV9mA600mV6mA120mV0.10.00115Kg85

EX600-40~6300~4.2≤ 0.1%900mV13mA600mV8mA120mV0.10.00115Kg85

EX600-60~6300~6.3≤ 0.1%900mV19mA600mV13mA120mV0.10.00118Kg85

EX600-80~6300~8.4≤ 0.1%900mV25mA600mV17mA120mV0.10.00118Kg85

  4U Size 426mm(W)*176mm(H)*545mm(D) : 6kW ~ 10kW

EX20-3000~210~315≤ 0.1%30mV945mA20mV630mA30mV0.010.126.5Kg80

EX20-3600~210~378≤ 0.1%30mV1134mA20mV756mA30mV0.010.129Kg80

EX20-4200~210~441≤ 0.1%30mV1323mA20mV882mA30mV0.010.131.5Kg80

EX20-4800~210~504≤ 0.1%30mV1512mA20mV1008mA30mV0.010.134Kg80

EX30-2000~31.50~210≤ 0.1%45mV630mA30mV420mA30mV0.010.126.5Kg83

EX30-2400~31.50~252≤ 0.1%45mV756mA30mV504mA30mV0.010.129Kg83

EX30-2800~31.50~294≤ 0.1%45mV882mA30mV588mA30mV0.010.131.5Kg83

EX30-3200~31.50~336≤ 0.1%45mV1008mA30mV672mA30mV0.010.134Kg83

EX50-1200~52.50~26≤ 0.1%75mV378mA50mV252mA30mV0.010.126.5Kg85

EX50-1440~52.50~151.2≤ 0.1%75mV454mA50mV302mA30mV0.010.129Kg85

EX50-1680~52.50~176.4≤ 0.1%75mV529mA50mV353mA30mV0.010.131.5Kg85

EX50-1920~52.50~201.6≤ 0.1%75mV605mA50mV403mA30mV0.010.134Kg85

EX60-1000~630~105≤ 0.1%90mV315mA60mV210mA30mV0.010.126.5Kg85

EX60-1200~630~126≤ 0.1%90mV378mA60mV252mA30mV0.010.129Kg85

EX60-1400~630~147≤ 0.1%90mV441mA60mV294mA30mV0.010.131.5Kg85

EX60-1600~630~168≤ 0.1%90mV504mA60mV336mA30mV0.010.134Kg85

EX80-750~840~78.75≤ 0.1%120mV236mA80mV158mA30mV0.010.0126.5Kg85

EX80-900~840~94.5≤ 0.1%120mV284mA80mV189mA30mV0.010.0129Kg85

EX80-1050~840~110.25≤ 0.1%120mV331mA80mV221mA30mV0.010.131.5Kg85

EX80-1200~840~126≤ 0.1%120mV378mA80mV252mA30mV0.010.134Kg85

EX100-600~1050~63≤ 0.1%150mV189mA100mV126mA40mV0.10.0126.5Kg85

EX100-720~1050~75.6≤ 0.1%150mV227mA100mV151mA40mV0.10.0129Kg85

EX100-84*0~1050~88.2≤ 0.1%150mV265mA100mV176mA40mV0.10.0131.5Kg85

EX100-960~1050~100.8≤ 0.1%150mV302mA100mV202mA40mV0.10.0134Kg85

EX150-400~157.50~42≤ 0.1%225mV126mA150mV84mA50mV0.10.0126.5Kg85

EX150-480~157.50~50.4≤ 0.1%225mV151mA150mV101mA50mV0.10.0129Kg85

EX150-560~157.50~58.8≤ 0.1%225mV176mA150mV118mA50mV0.10.0131.5Kg85

EX150-640~157.50~67.2≤ 0.1%225mV202mA150mV134mA50mV0.10.0134Kg85

EX200-300~2100~31.5≤ 0.1%300mV95mA200mV63mA60mV0.10.0126.5Kg85

EX200-360~2100~37.8≤ 0.1%300mV113mA200mV76mA60mV0.10.0129Kg85

EX200-420~2100~44.1≤ 0.1%300mV132mA200mV88mA60mV0.10.0131.5Kg85

EX200-480~2100~50.4≤ 0.1%300mV151mA200mV101mA60mV0.10.0134Kg85

EX300-200~3150~21≤ 0.1%450mV63mA300mV42mA100mV0.10.0126.5Kg85

EX300-240~3150~25.2≤ 0.1%450mV76mA300mV50mA100mV0.10.0129Kg85

EX300-280~3150~29.4≤ 0.1%450mV88mA300mV59mA100mV0.10.0131.5Kg85

EX300-320~3150~33.6≤ 0.1%450mV101mA300mV67mA100mV0.10.0134Kg85

EX600-100~6300~10.5≤ 0.1%900mV32mA600mV21mA240mV0.10.0131Kg85

EX600-120~6300~12.6≤ 0.1%900mV38mA600mV25mA240mV0.10.0131Kg85

EX600-140~6300~14.7≤ 0.1%900mV44mA600mV29mA240mV0.10.0131.5Kg85

EX600-160~6300~16.8≤ 0.1%900mV50mA600mV34mA240mV0.10.0131.5Kg85






· 옵션






· 액세서리












· TCP/IP 통신






· AC 파워 코드(1U Size Type F)

· 출력 ON/OFF 신호 제어





· 출력 볼트

· 아날로그 입력 제어(DC 0~5V 또는 0~10V) 및 아날로그 출력 모니터링(DC 0~5V

· 랙 마운트 브래킷

 또는 0~10V), 절연형





· 메뉴얼 (QR코드)

· AC 입력 380V ±10%, 3상 4선식(R.S.T.N.G), 50~60Hz






· AC 입력 220V ±10%, 3상 3선식(R.S.T.G), 50~60Hz
